Brainy L

Localization

What is it?

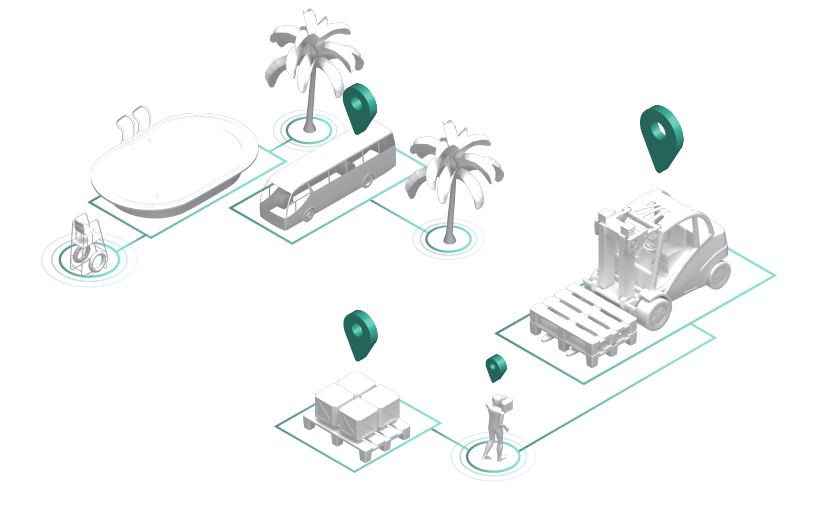

Brainy L is the advanced item/people localization and tracking solution for both indoor and outdoor environments. Brainy L is likewise the most precise  RTLS tagging available with sub decimeters indoor precision.

How?

Brainy L is the most compact attachable or embeddeble tags  available on market. It is based on state of the art localization technolgies. The system is able to collect position and movement data of all tag equipped devices.

This unique solution furthermore transports local sensing data and localization data boundled and timestamped to the cloud (blockchain notification available).

At the other side of the network BRAINY (the cloud based software platform) is demanded to collect data and mapping real time objects position and movmentes implementing an efficient active monitoring and path analysis for all the objects/fleet/person connected.

Elements

Brainy L

Localization

What is it?

Brainy L is the advanced item/people localization and tracking solution for both indoor and outdoor environments. Brainy L is likewise the most precise  RTLS tagging available with sub decimeters indoor precision.

How?

Brainy L is the most compact attachable or embeddeble tags  available on market. It is based on state of the art localization technolgies. The system is able to collect position and movement data of all tag equipped devices.

This unique solution furthermore transports local sensing data and localization data boundled and timestamped to the cloud (blockchain notification available).

At the other side of the network BRAINY (the cloud based software platform) is demanded to collect data and mapping real time objects position and movmentes implementing an efficient active monitoring and path analysis for all the objects/fleet/person connected.

Download PDF

Elements

Anchor

Tag

Charging Station

Vehicle Tag

Item Tag

Platform

Anchor

Tag

Charging Station

Vehicle Tag

Item Tag

Platform

Tach facts

Anchor/Fixed radio localizer

  • UWB dual frequencies radio with 75m range
  • Embedded ISO or directive high gain antenna
  • High Multipath and interferences rejections
  • Ultra precise location engine (centimeters)
  • Upto 100m range in power boost mode
  • POE/ VAC power supply or Battery operated
  • Highly sensorized (BT, T|H|P, light, sounds)
  • Over the Air (OTA) updated



Phisycal parameters:

Size: 140 x 140 x 46,5 mm

Working temperature : -20 °C +60 °C

Ingress protection : IP 65 Opt.

Weight : 204 g

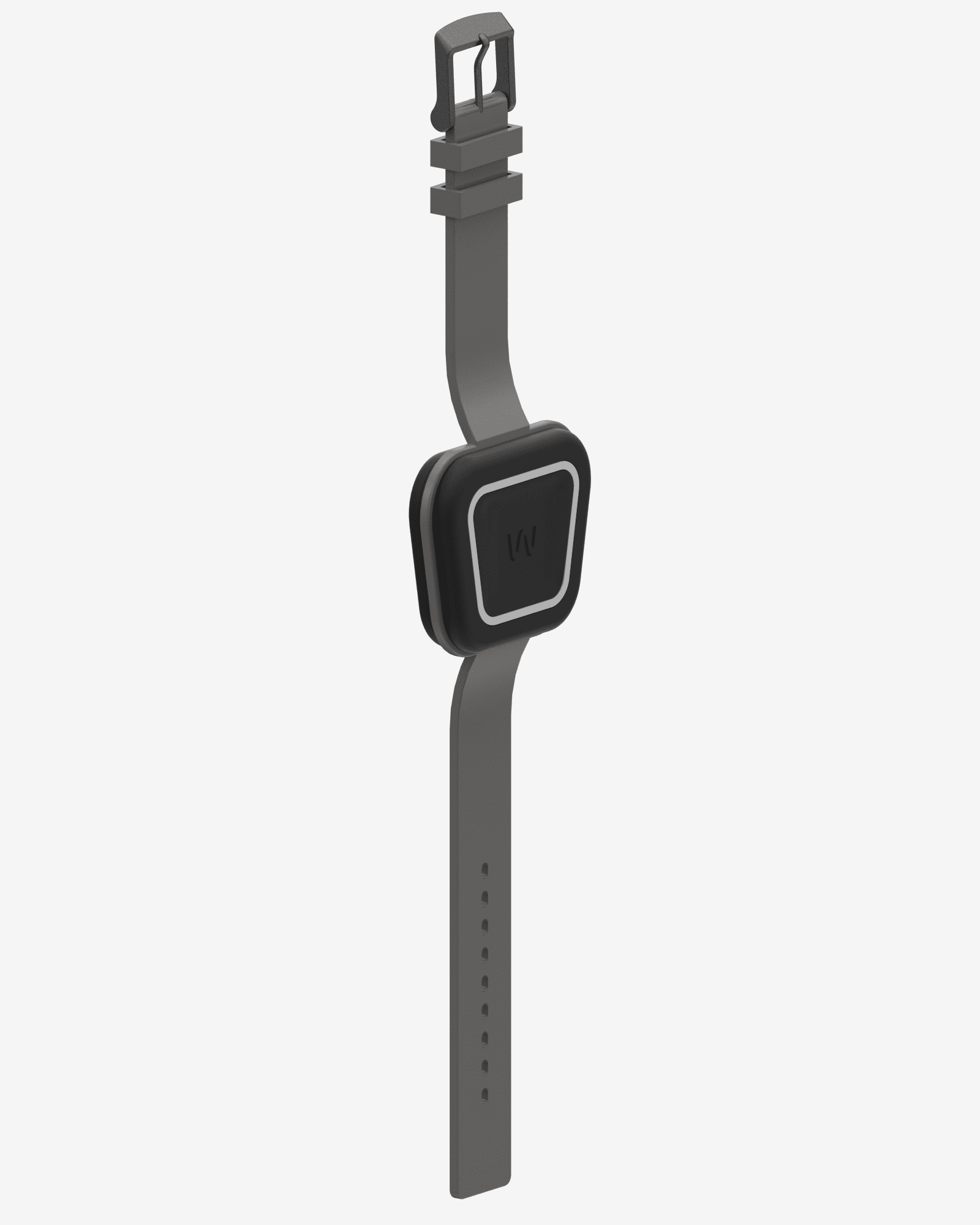

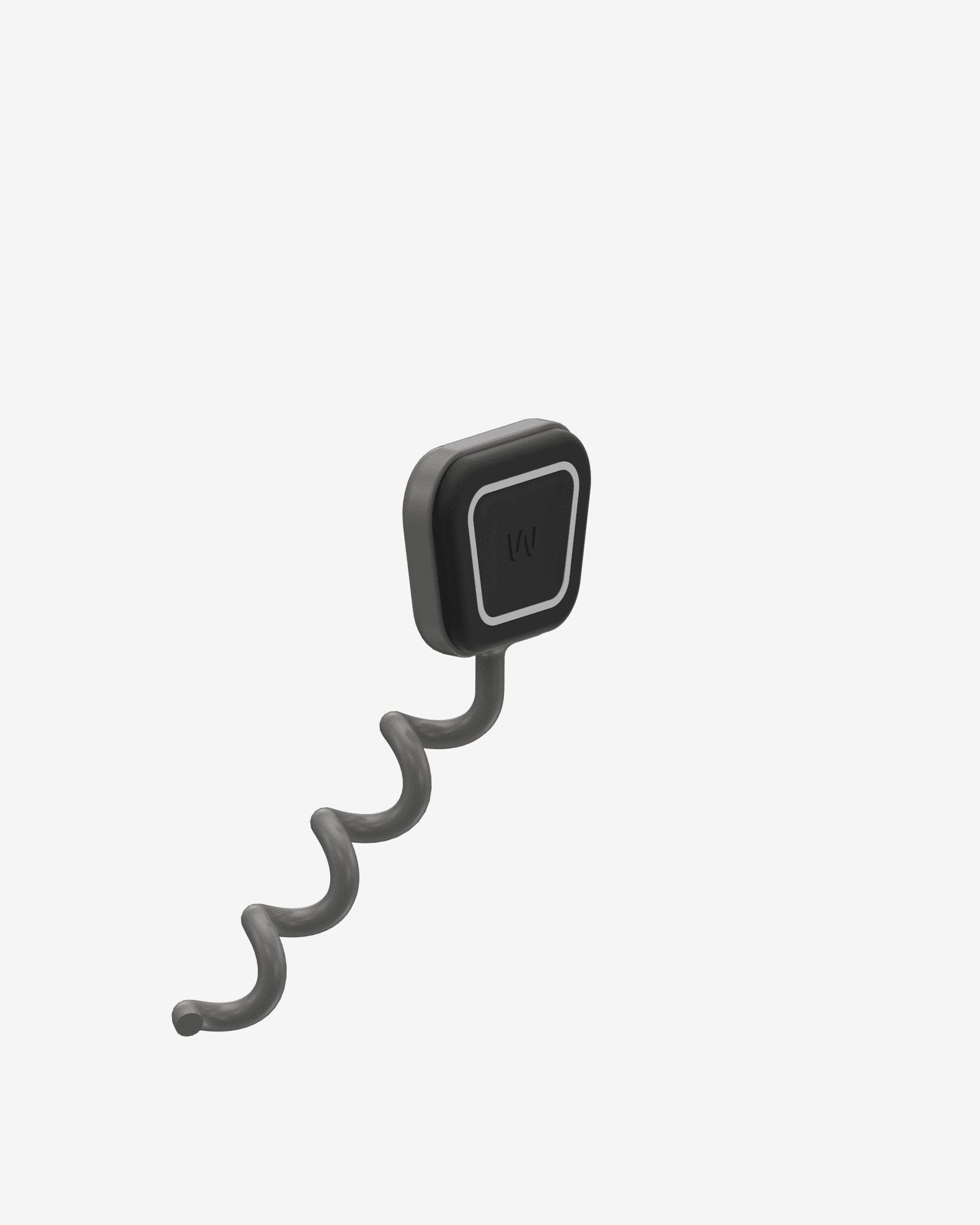

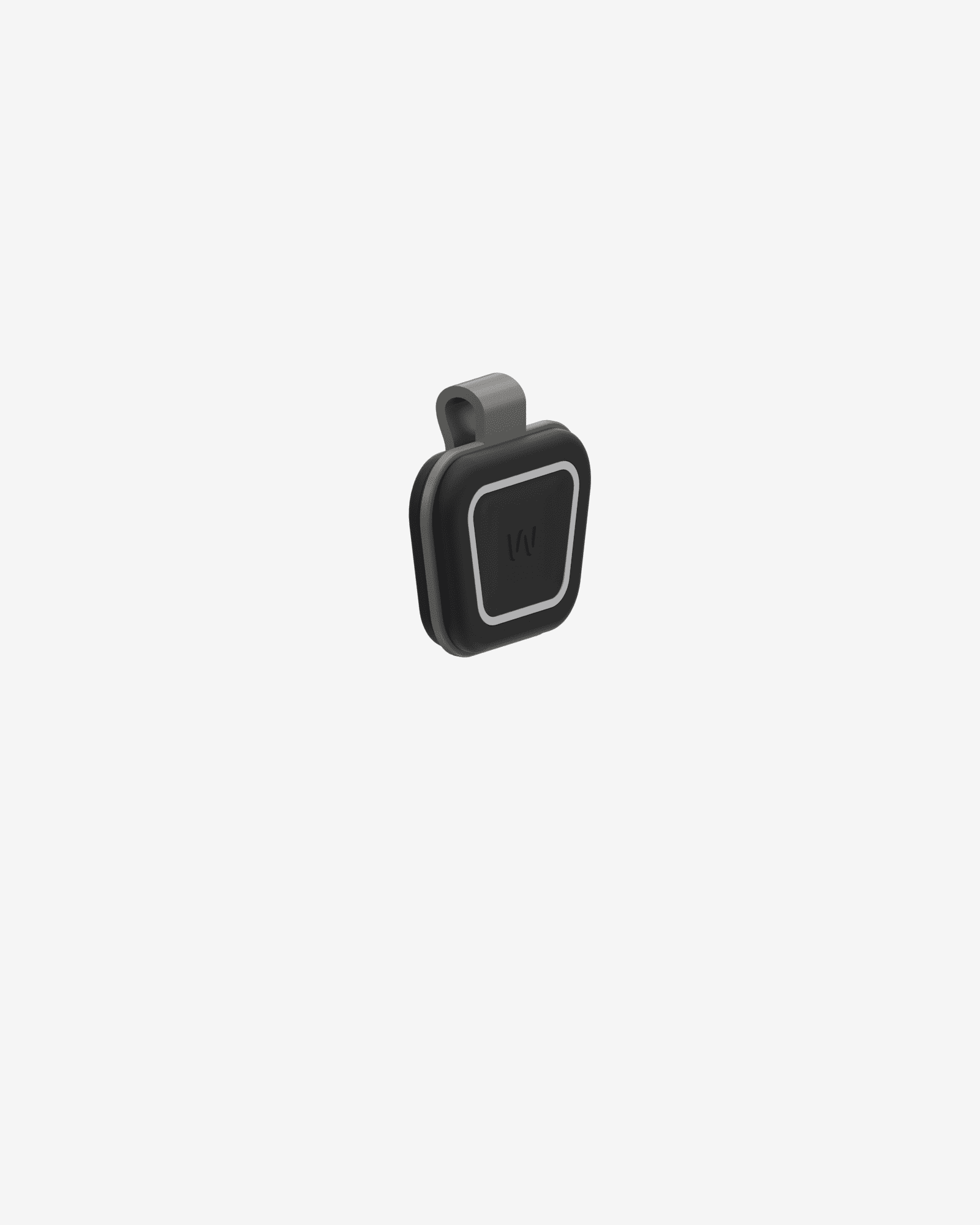

Standard moving Tag

  • UWB dual frequencies radio
  • Embedded Isotropic antenna
  • Rechargeable lithium Battery
  • Highly sensorized (T|H|P, light and sound)
  • Motion/Fall/Man Down embedded
  • Dedicated channel for 6Mbps data transport
  • Optional Biometrics :  HR , Skin Temperature
  • Over the Air (OTA) updated



Phisycal parameters:

Size: 50 x 43 x 20 mm

Working temperature : -20 °C +60 °C

Ingress protection : IP 65 Opt.

Weight : 30 g

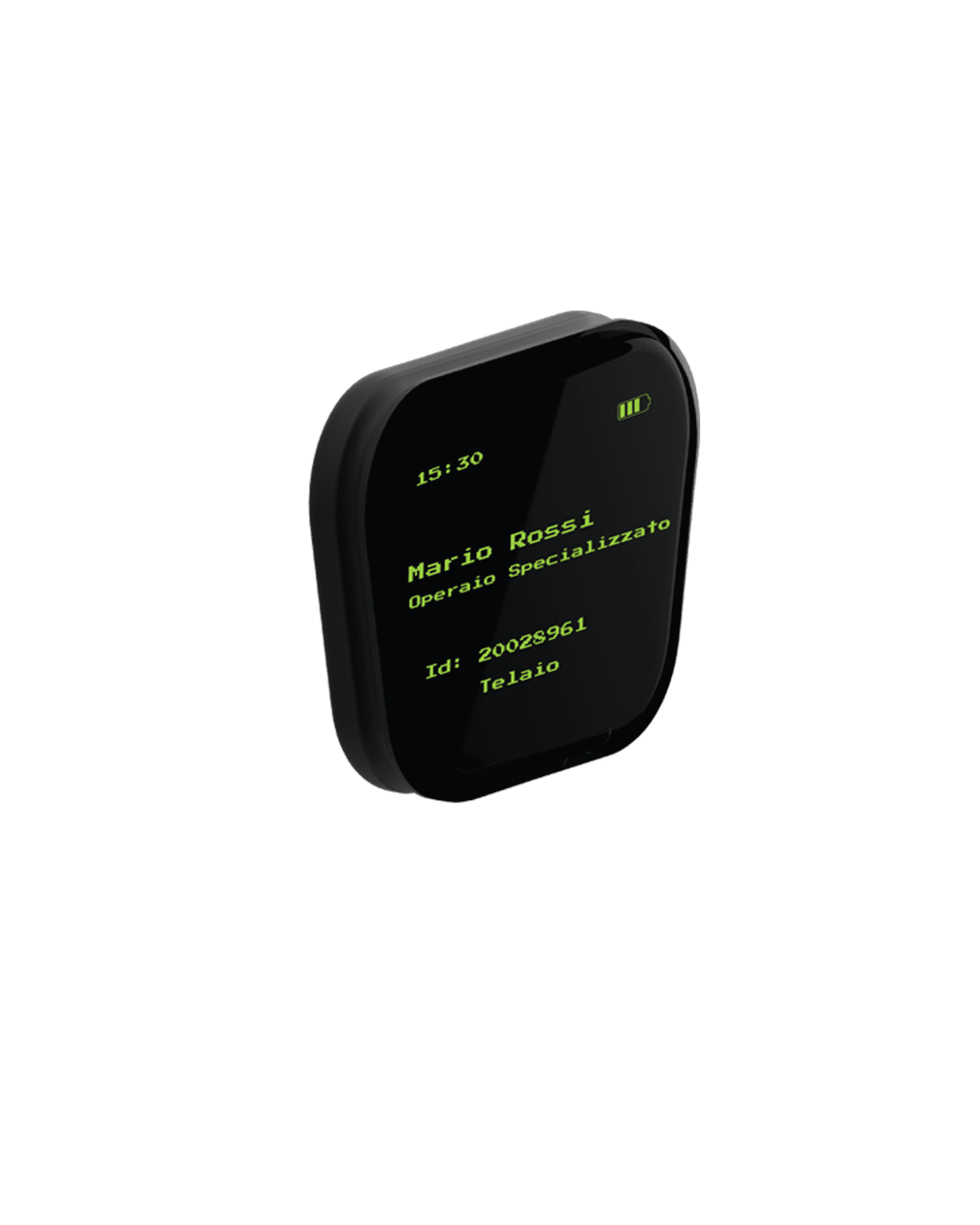

Monitor moving Tag

  • UWB dual frequencies radio
  • Embedded Isotropic antenna
  • Rechargeable lithium Battery
  • Highly sensorized (T|H|P, light and sound)
  • Motion/Fall/Man Down embedded
  • Dedicated channel for 6Mbps data transport
  • Color or E-Ink option display
  • Over the Air (OTA) updated



Phisycal parameters:

Size: 50 x 43 x 20 mm

Working temperature : -20 °C +60 °C

Ingress protection : IP 65 Opt.

Weight : 40 g

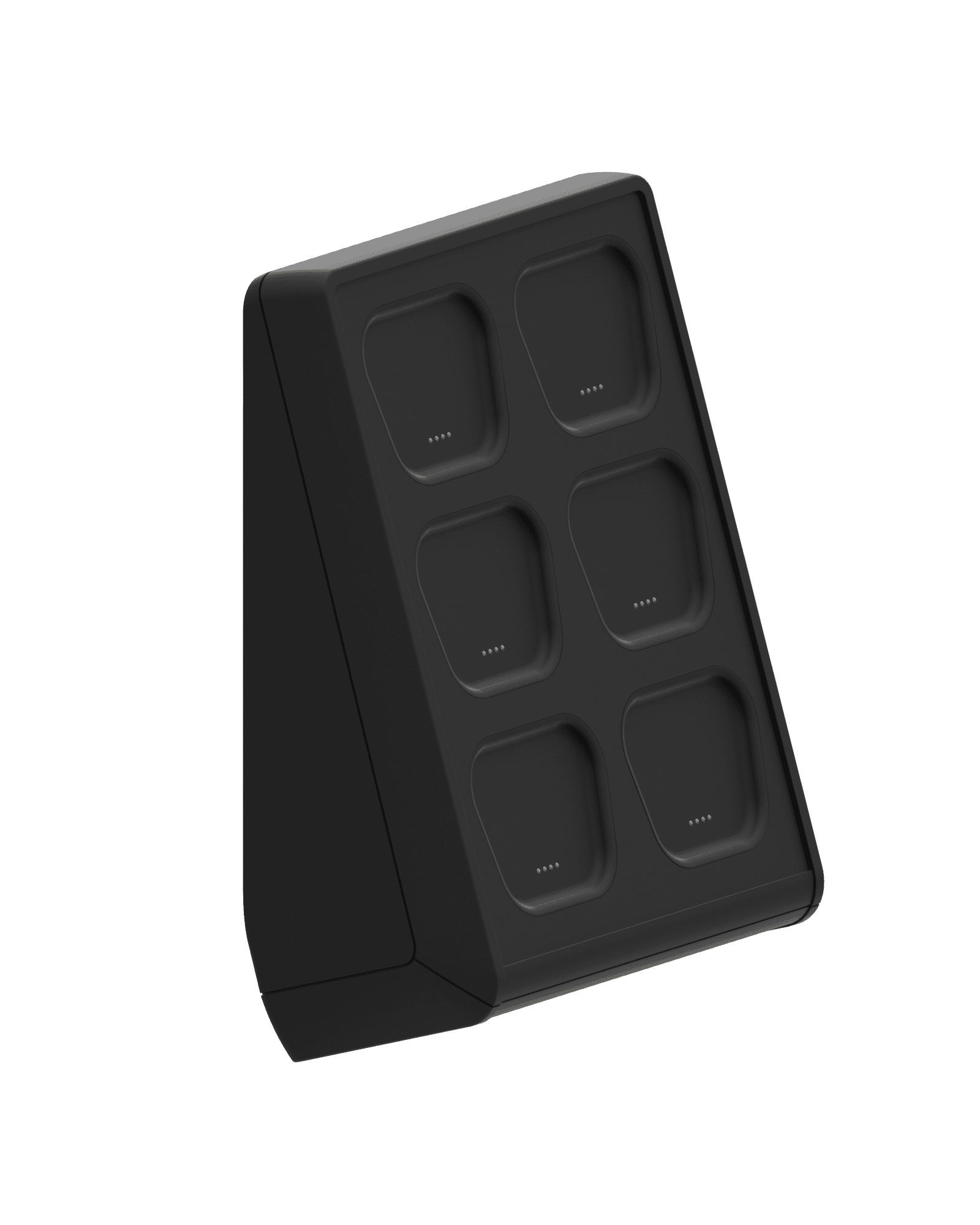

Multi-tags Charging station

  • Dimension: 148 x 210 x 80 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP 40
  • Weight: 276 g

Vehicle Tag

  • Dimension: 101 x 50 x 26 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP65 Opt.
  • Weight: 46 g

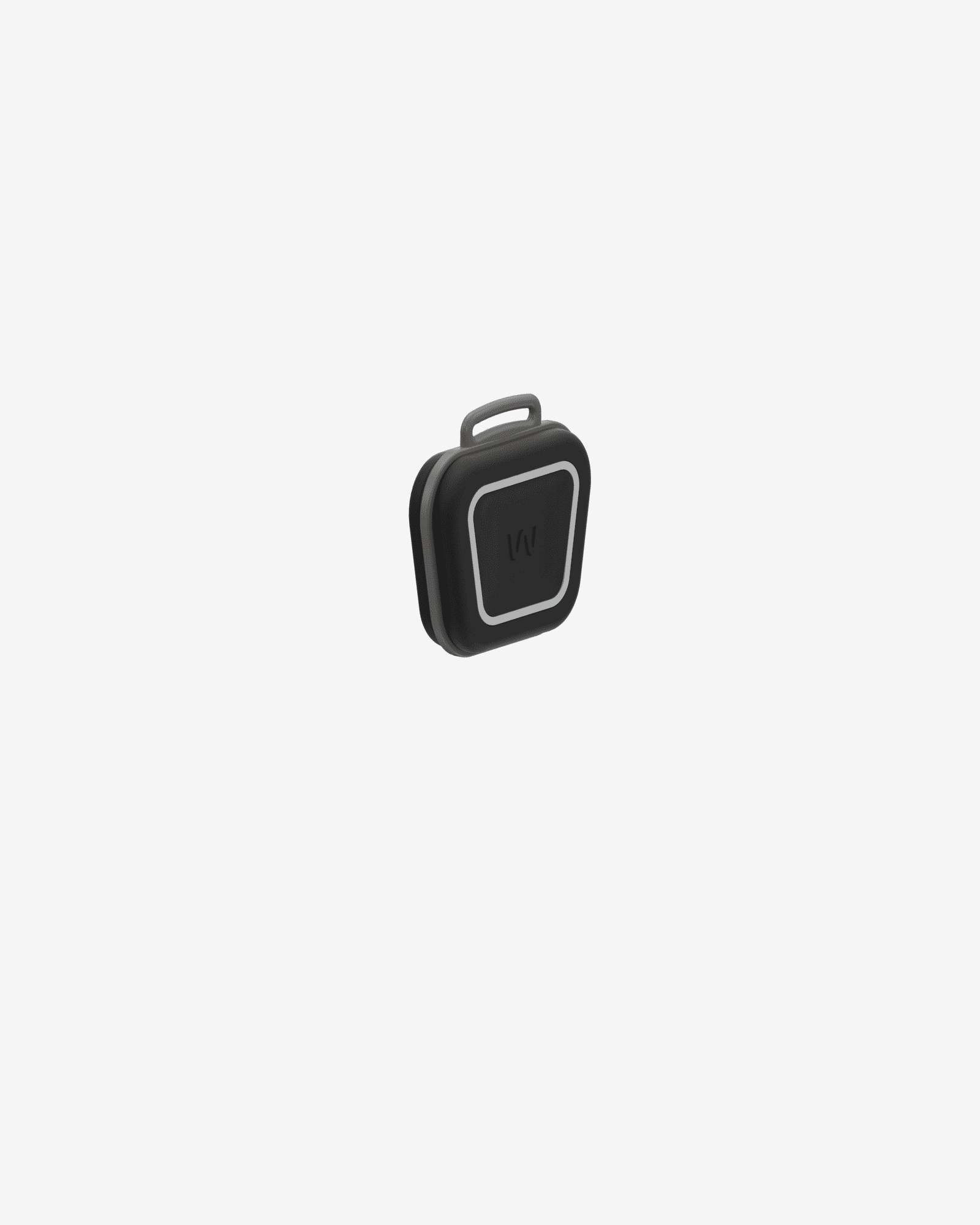

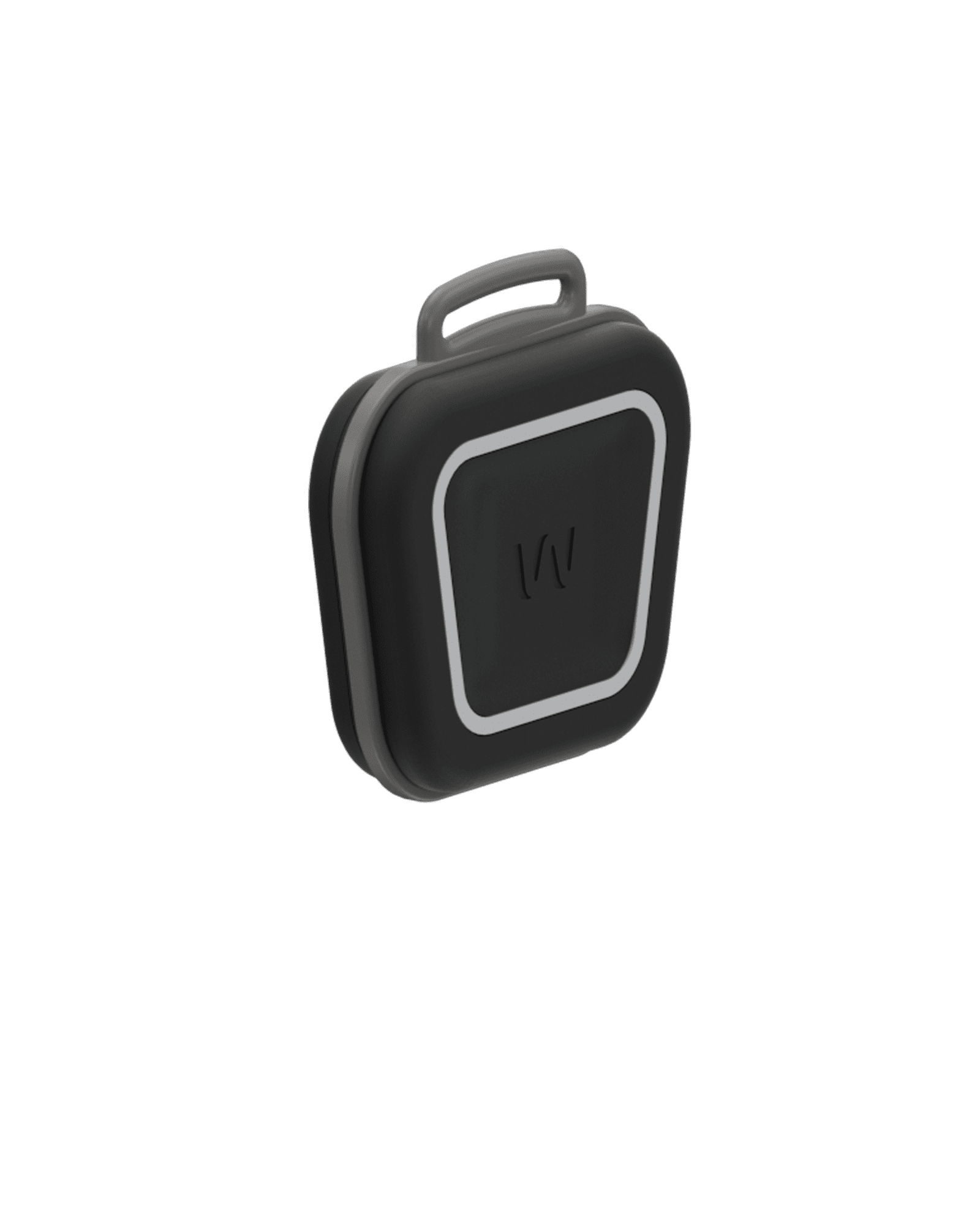

Item Tag

  • Dimension: 85 x 54 x 10 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP 54
  • Weight: 20 g

Tach facts

Anchor

  • Dimension: 140 x 140 x 46,5 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP 65 Opt.
  • Weight: 204 g

Tag

  • Dimension:  50 x 43 x 20 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP 65
  • Weight: 30 g

Monitor Tag

  • Dimension:  50 x 43 x 20 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP 65
  • Weight: 30 g

Charging station

  • Dimension: 148 x 210 x 80 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP 40
  • Weight: 276 g

Vehicle Tag

  • Dimension: 101 x 50 x 26 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP65 Opt.
  • Weight: 46 g

Item Tag

  • Dimension: 85 x 54 x 10 mm
  • Working temperature: -20 °C +60 °C
  • Ingress protection classification: IP 54
  • Weight: 20 g

Platform

Platform

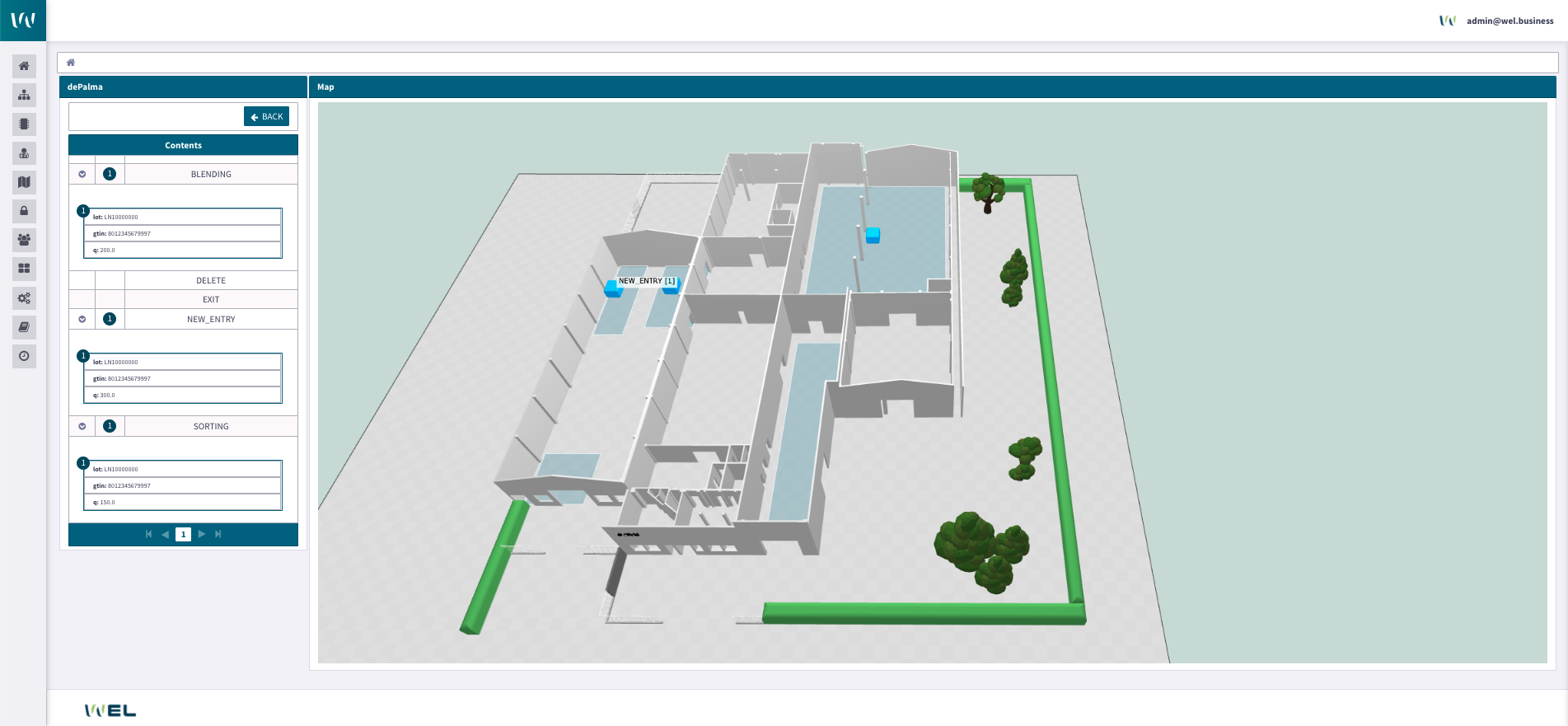

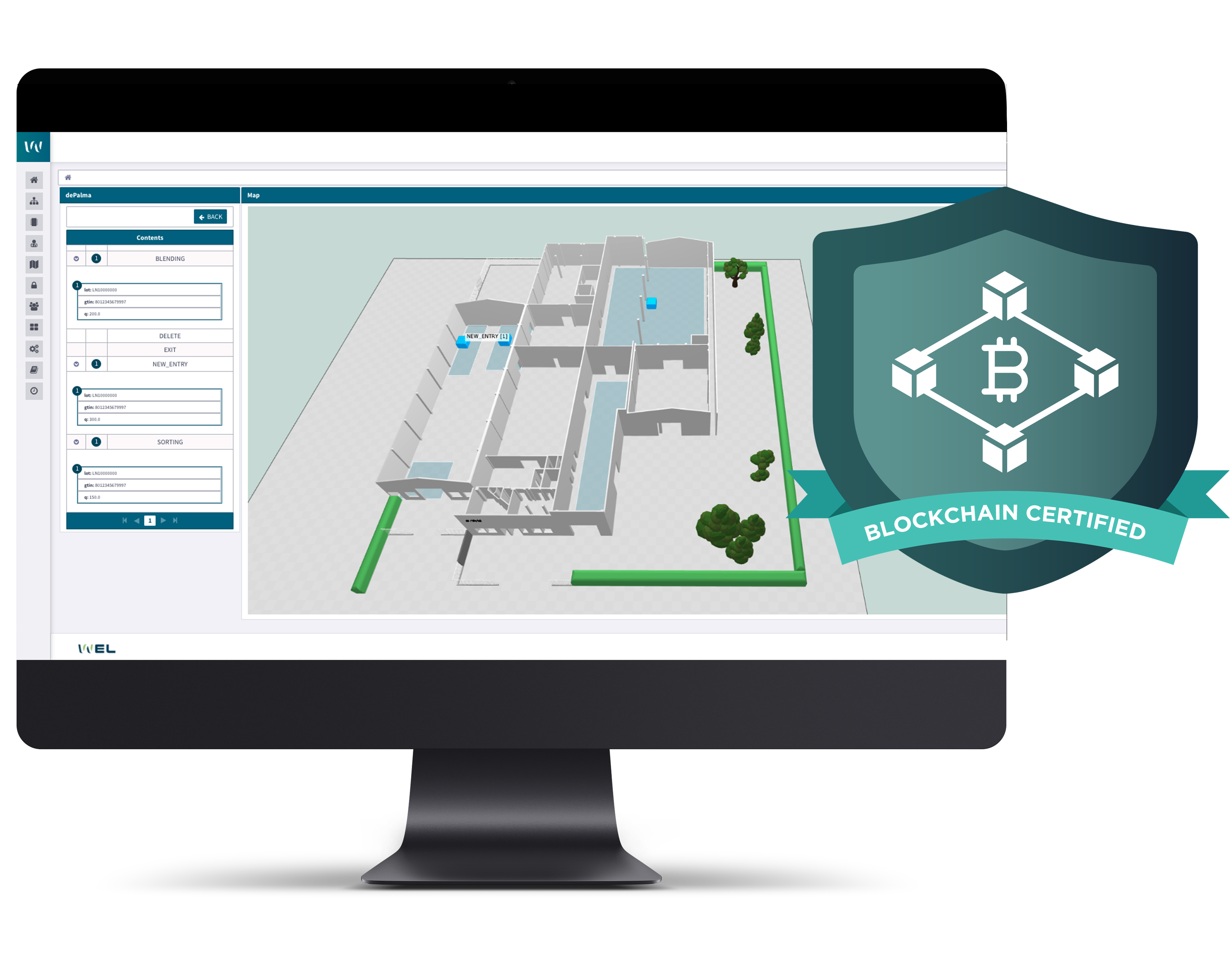

Digital-twin

3D digital representation in scale of the environment mapped with the elements that characterize it dynamically tagged (associated with the localization system) and represented. This type of technology allows you to create a digital replica of the physical environment with data processed and displayed in synchronous mode.

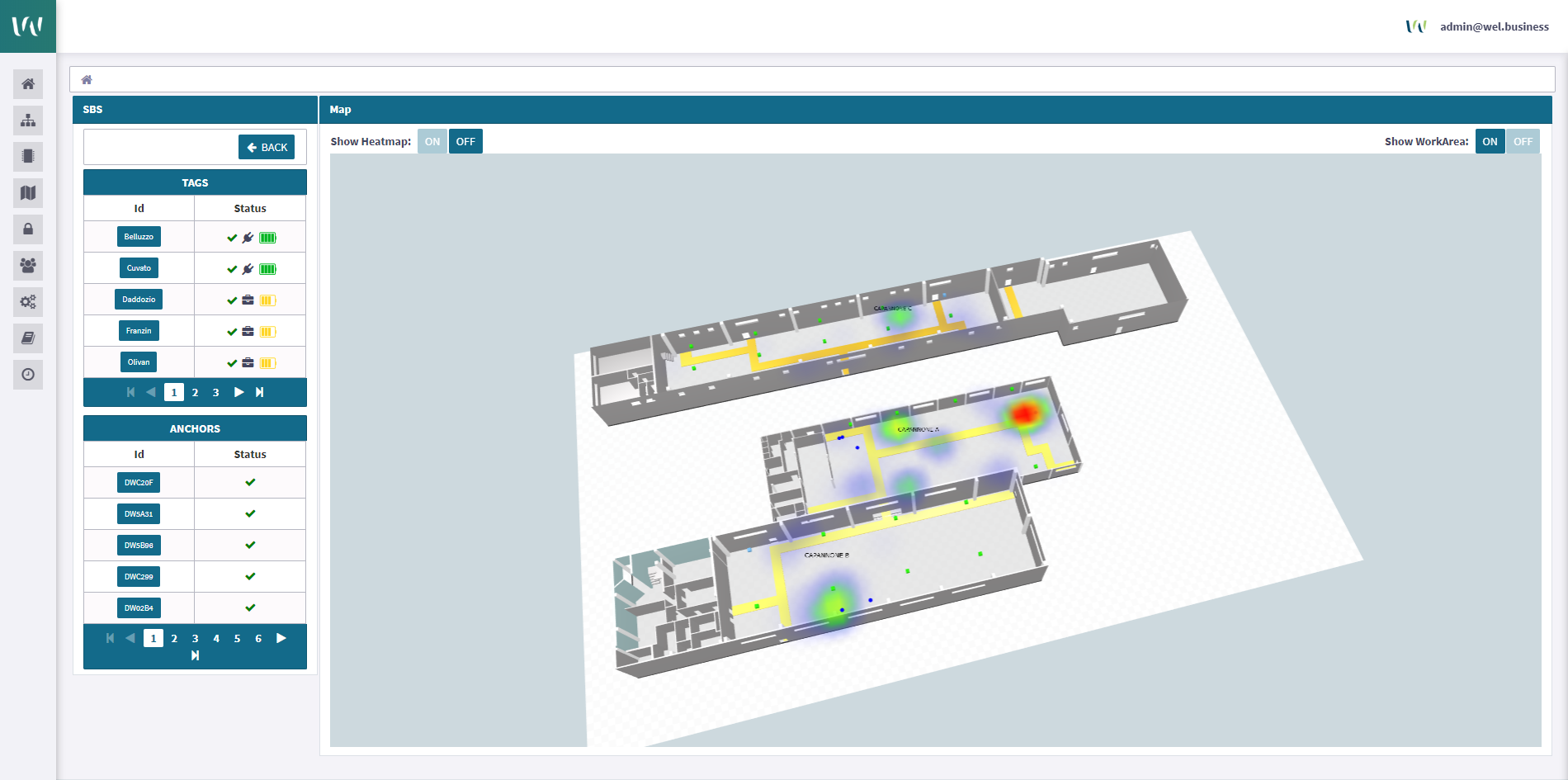

Heat map

Often referred to as a “heat map” it is a particular analysis that allows you to determine the “temporal” value of the elements tagged to specific parking areas. Through our web platform it will be possible to view the analysis with a simple click.

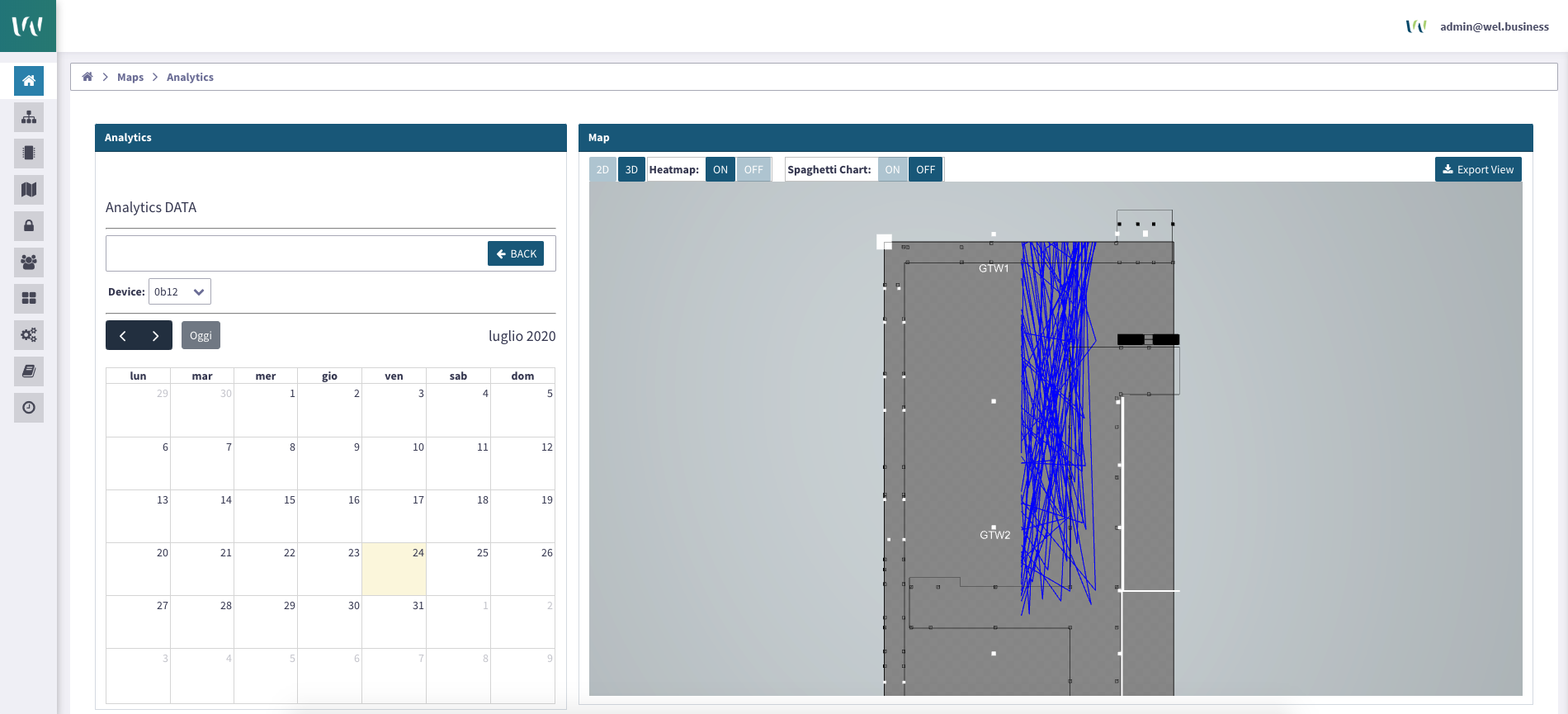

Spaghetti chart

Analysis of logical flows (tracking) of objects or resources within the mapped context Through our web platform it will be possible to view this particular analysis with a simple click.

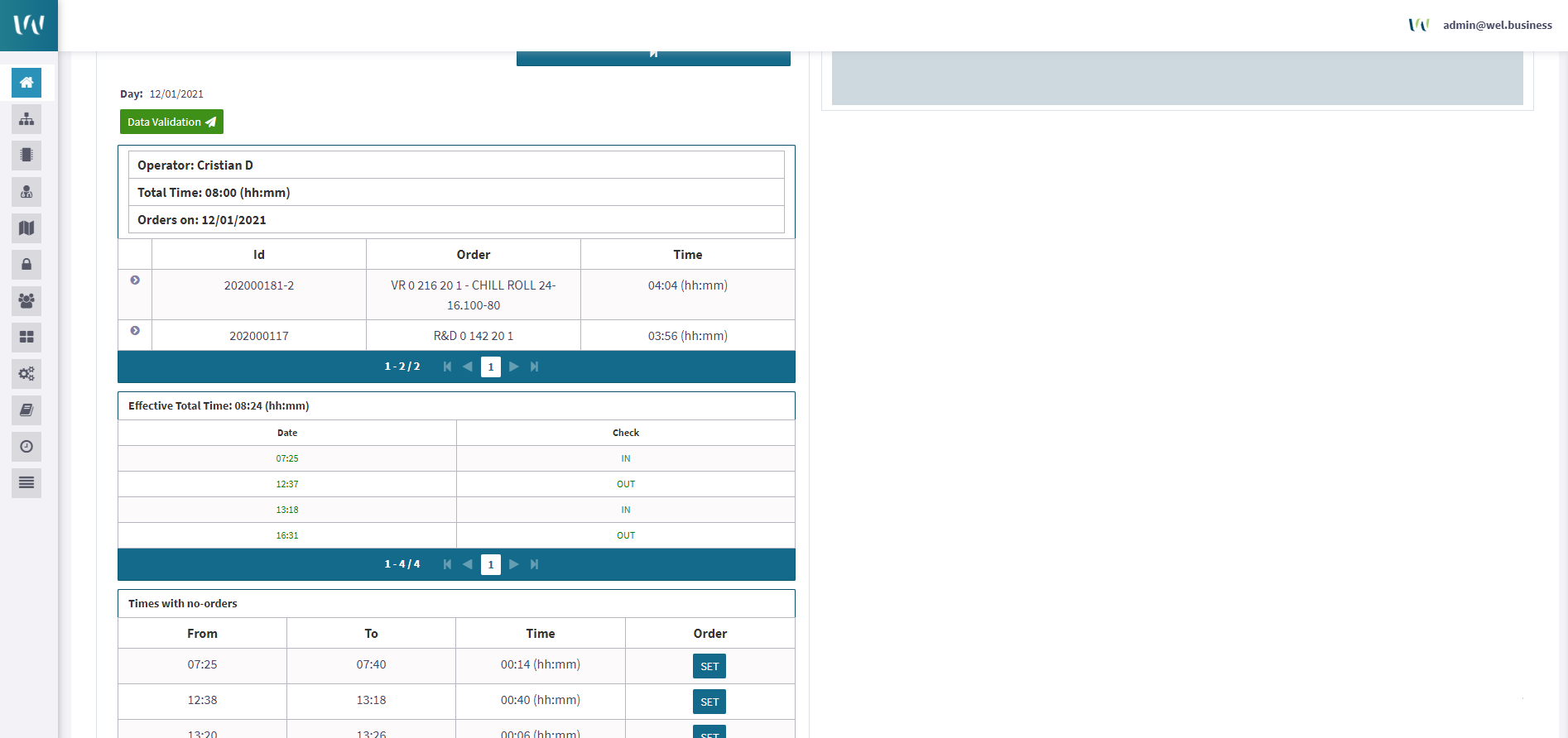

Management control

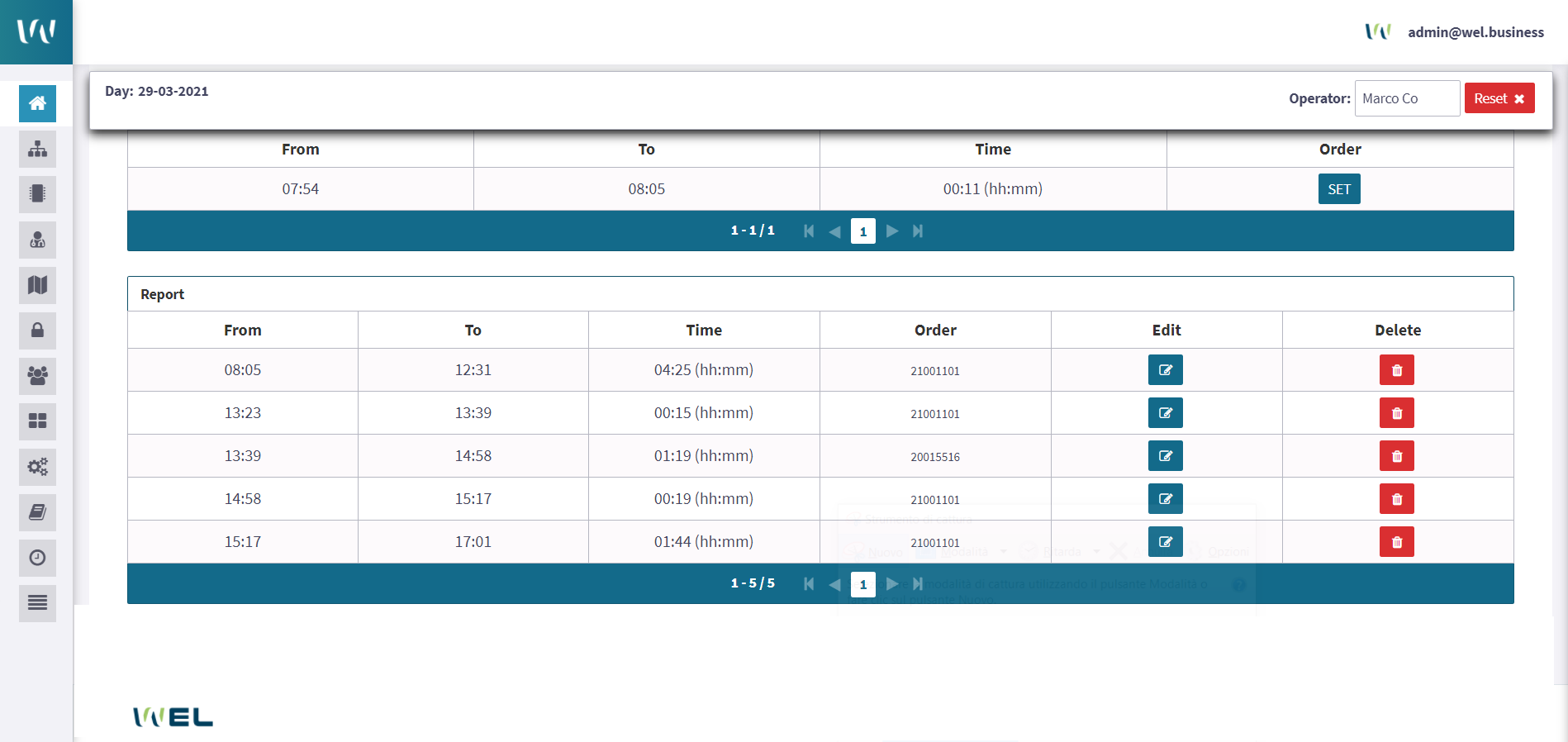

Ability to edit specific areas on the digital twin with the aim of highlighting orders / work areas and subjecting objects or resources to them. This type of functionality allows you to enable real-time analysis of deviations for issues such as “man-hour cost per job”.

Process control

Ability to send certain commands or information to resources or tagged items depending on the work area in which they are located.

Access control

Opening and closing gates according to the person / object tagged

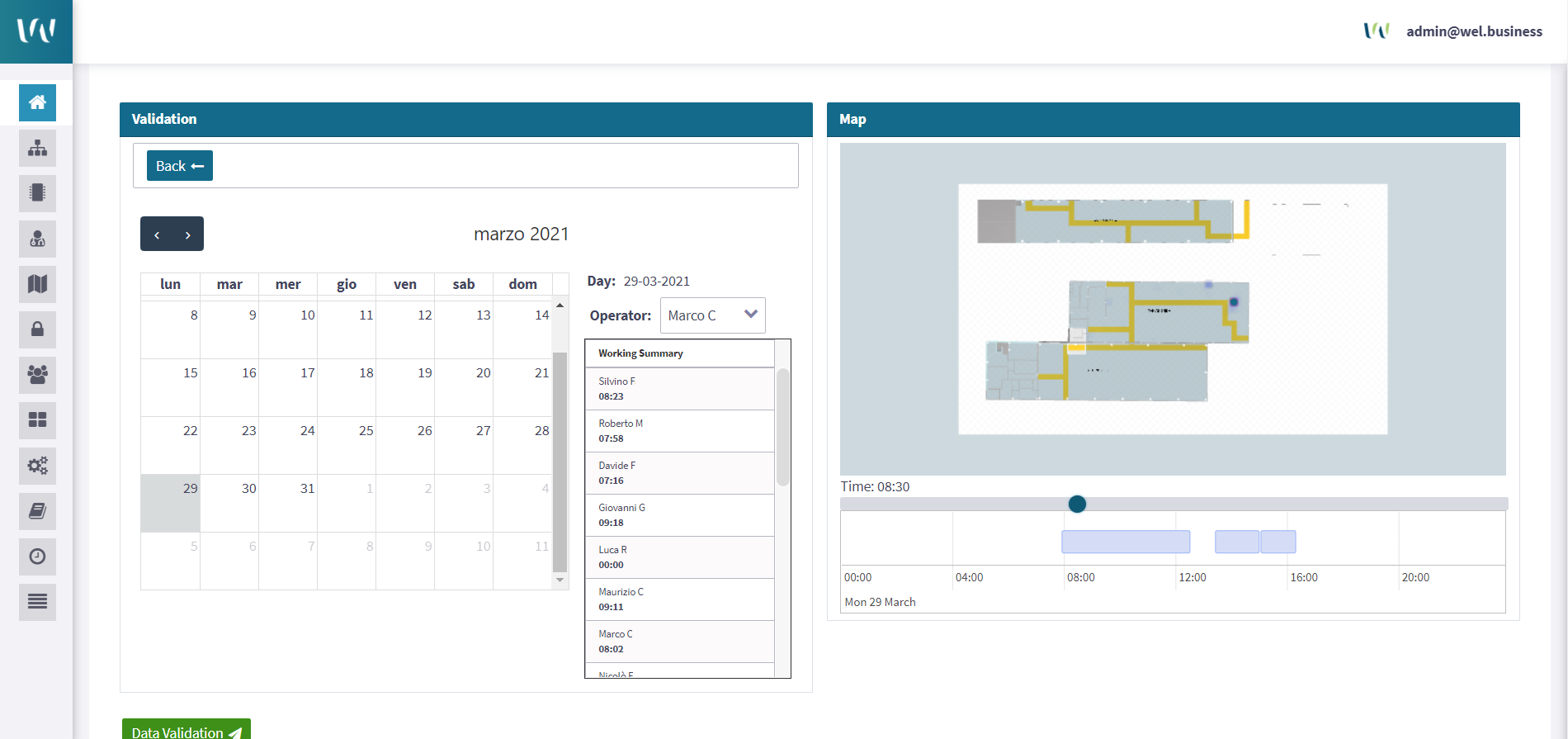

Attendance control

Dynamic and automated control of the presence or absence of work resources.

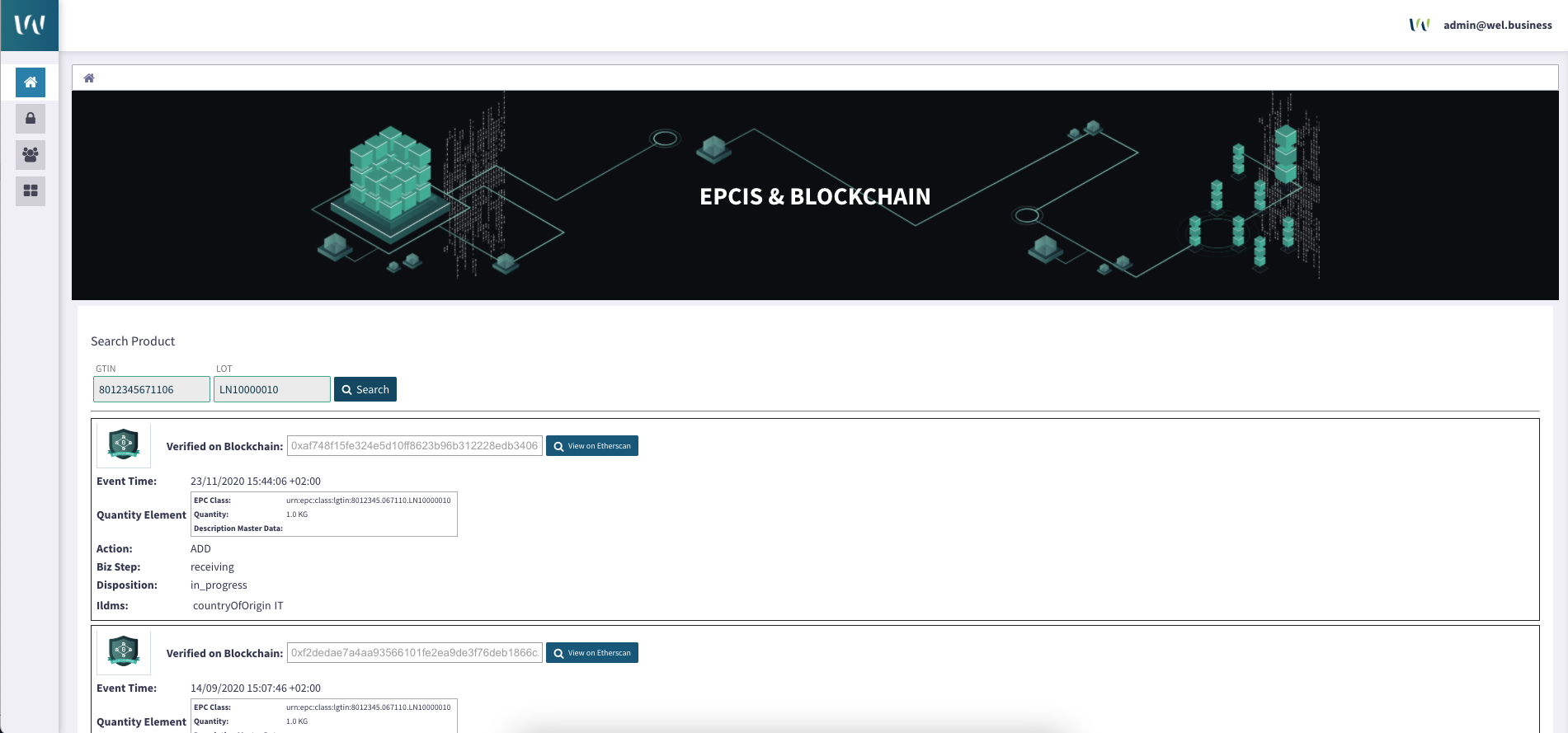

Traceability

Certification of the production cycle (blockchain compliance) highlighting the elements of value.

Safety & Security

Anti-contagion

  • Social distance – Maintaining the social distance between resources within a specific area through alerting systems aimed at the person
  • Access thresholds – Determine the maximum number of people within an area with the aim of enabling automated control / alerting systems
  • Temperature monitoring – Dynamic and real-time temperature control of people within a specific area

Abnormal behaviors

  • Through intelligent algorithms it is possible to determine suspicious or anomalous behaviors / movements that may represent a danger to the environment or to the person himself

Environmental sensing

  • Monitoring of certain environmental values ​​within the production context with the aim of ensuring safety

Fire fighting

  • Objective measurement system of the actual people entering / leaving a specific area

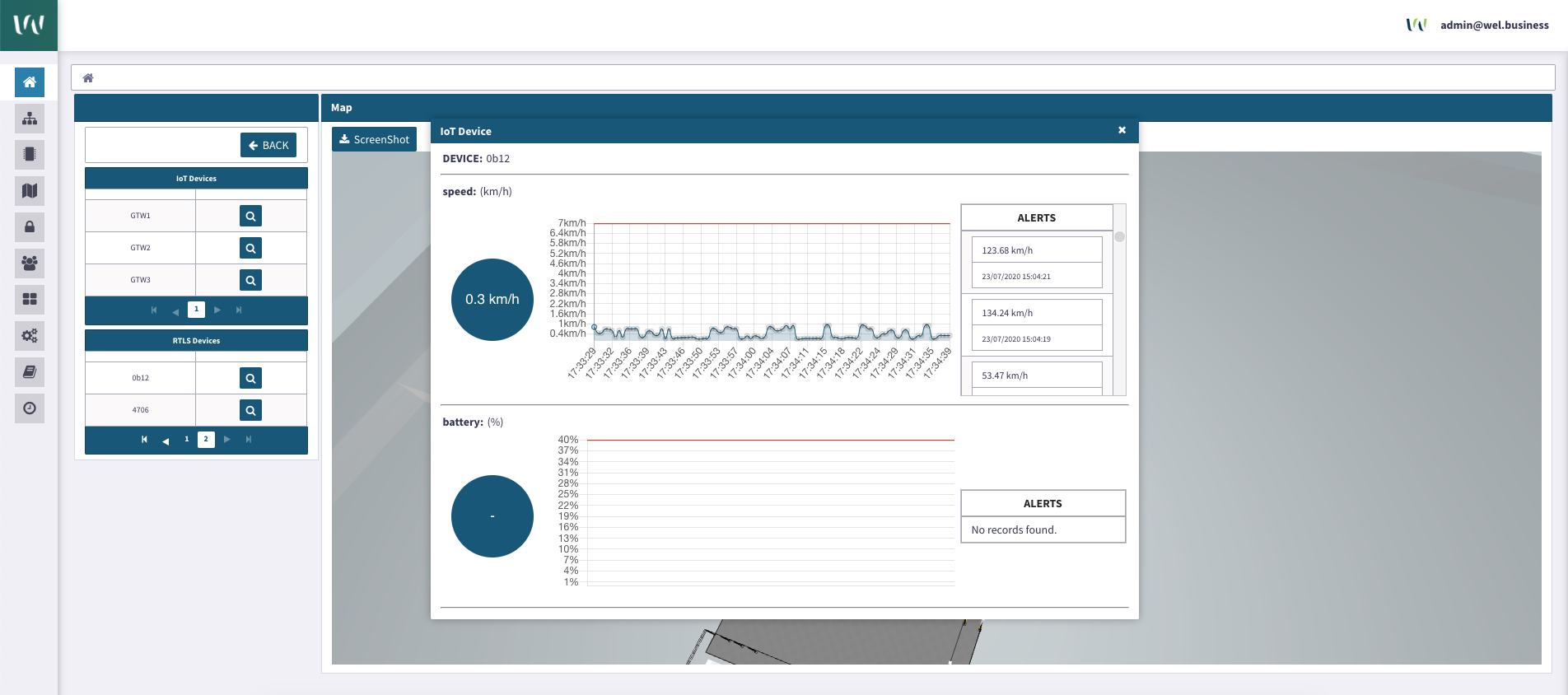

Man Down

  • “Man down” control system, generation of alerts when sudden accelerations occur that can pose risks to the safety of the worker

Digital-twin

3D digital representation in scale of the environment mapped with the elements that characterize it dynamically tagged (associated with the localization system) and represented. This type of technology allows you to create a digital replica of the physical environment with data processed and displayed in synchronous mode.

Heat map

Often referred to as a “heat map” it is a particular analysis that allows you to determine the “temporal” value of the elements tagged to specific parking areas. Through our web platform it will be possible to view the analysis with a simple click.

Spaghetti chart

Analysis of logical flows (tracking) of objects or resources within the mapped context Through our web platform it will be possible to view this particular analysis with a simple click.

Management control

Ability to edit specific areas on the digital twin with the aim of highlighting orders / work areas and subjecting objects or resources to them. This type of functionality allows you to enable real-time analysis of deviations for issues such as “man-hour cost per job”.

Process control

Ability to send certain commands or information to resources or tagged items depending on the work area in which they are located.

Access control

Opening and closing gates according to the person / object tagged

Attendance control

Dynamic and automated control of the presence or absence of work resources.

Traceability

Certification of the production cycle (blockchain compliance) highlighting the elements of value.

Safety & Security

Anti-contagion

  • Social distance – Maintaining the social distance between resources within a specific area through alerting systems aimed at the person
  • Access thresholds – Determine the maximum number of people within an area with the aim of enabling automated control / alerting systems
  • Temperature monitoring – Dynamic and real-time temperature control of people within a specific area

Abnormal behaviors

  • Through intelligent algorithms it is possible to determine suspicious or anomalous behaviors / movements that may represent a danger to the environment or to the person himself

Environmental sensing

  • Monitoring of certain environmental values ​​within the production context with the aim of ensuring safety

Fire fighting

  • Objective measurement system of the actual people entering / leaving a specific area

Man Down

  • “Man down” control system, generation of alerts when sudden accelerations occur that can pose risks to the safety of the worker
